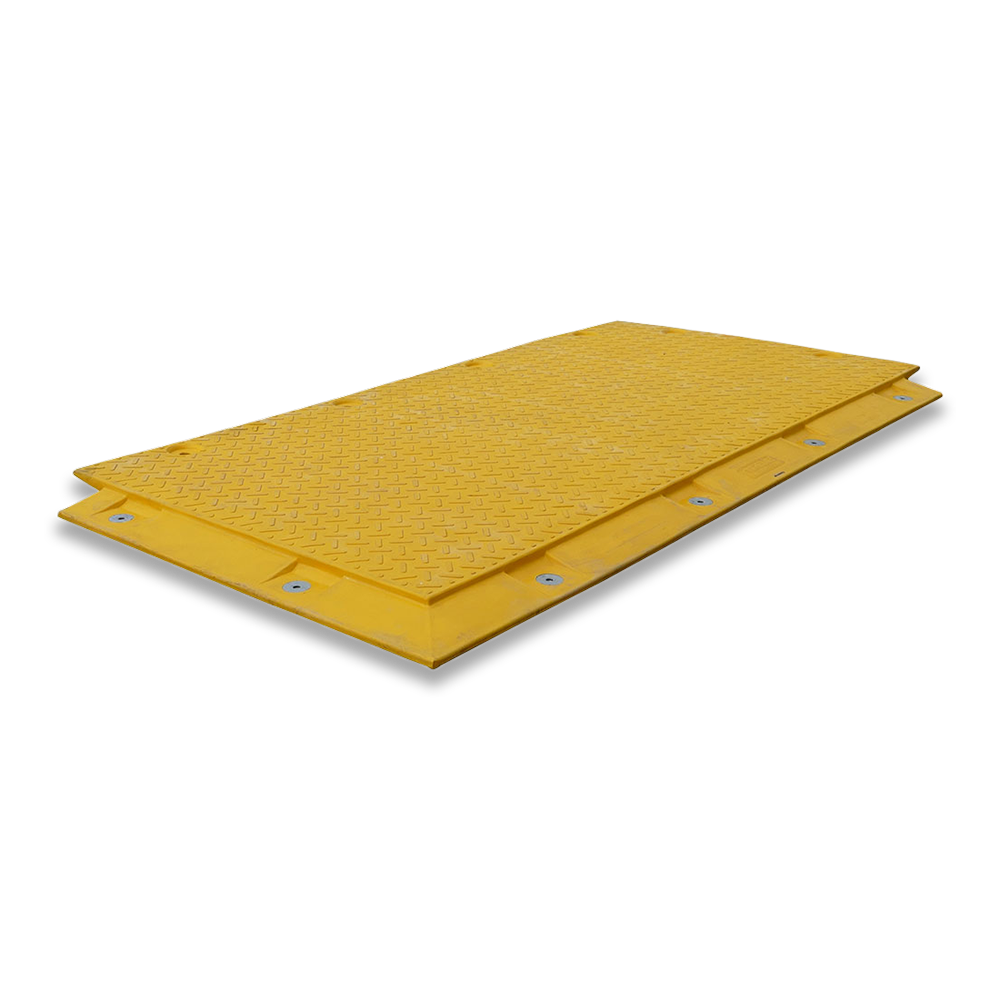

XtremeMat

Material:
Ultra tough HDPE plastic outer layer with a hard foam inner core

Weight Loading:
Up to 400 tons

Overall Size:
14’2” x 7‘5” x 4”

Surface Size:
13’4” x 6‘7”

Surface Area:
91 ft²

Weight:
848 lbs

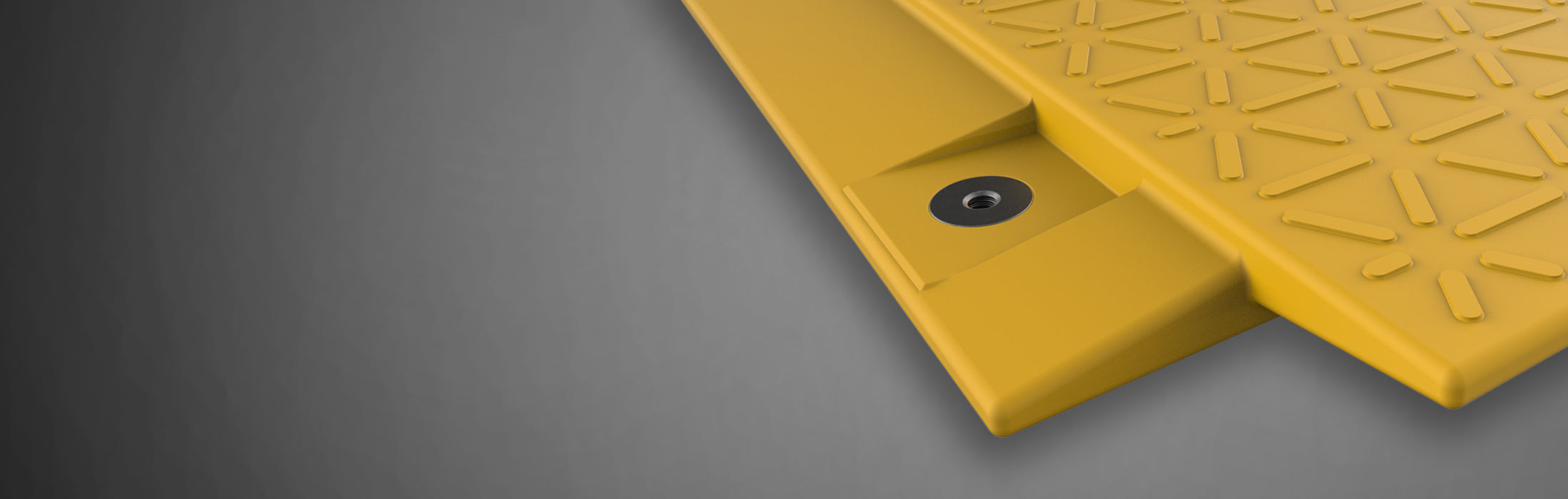

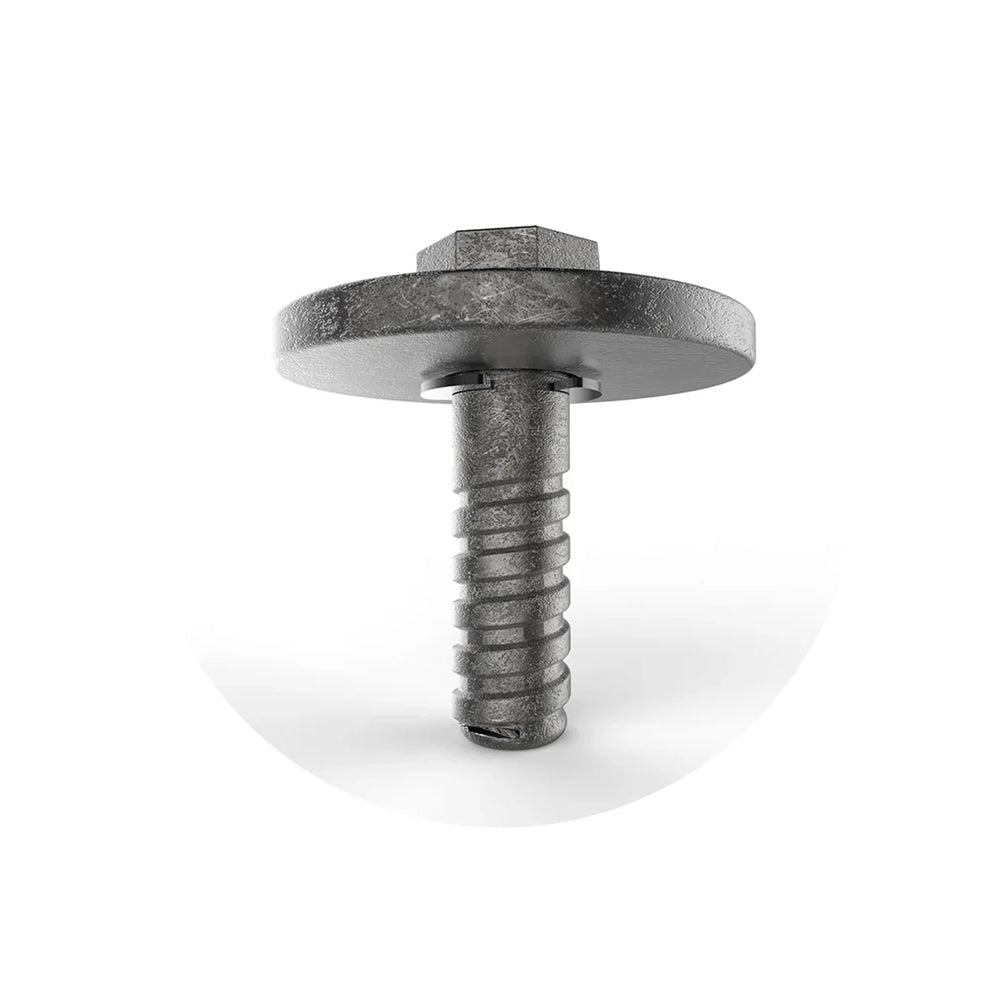

Connectors:

Design:

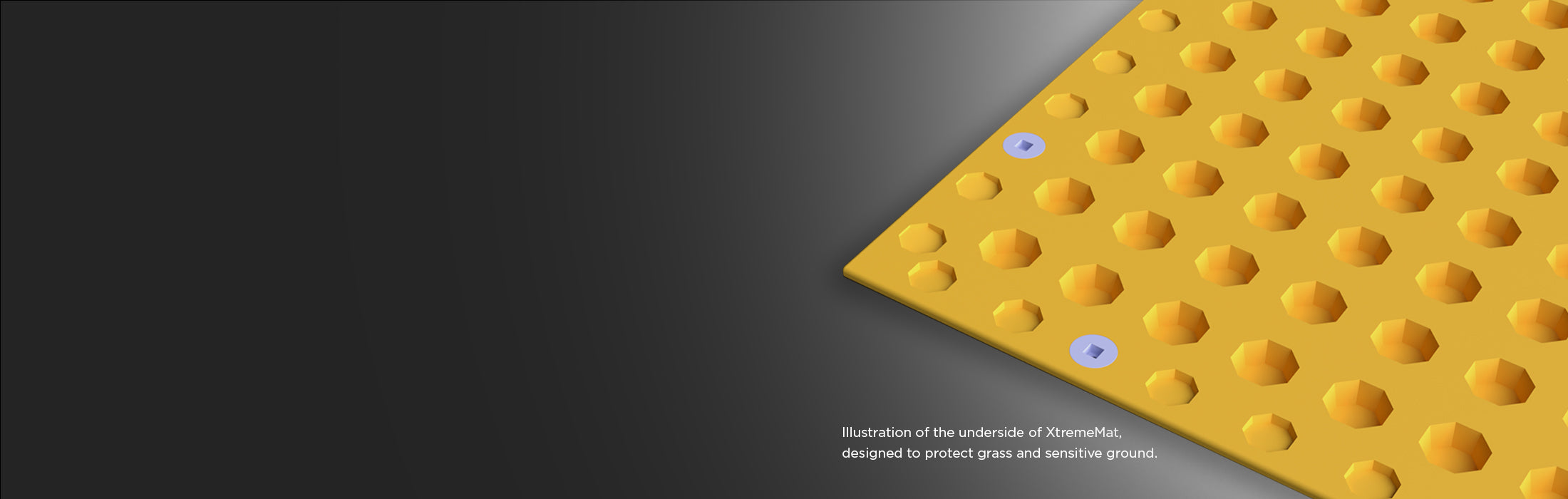

Underside is recessed to minimize grass and root disturbance. Sloped overlap for water run-off.

Modularity:

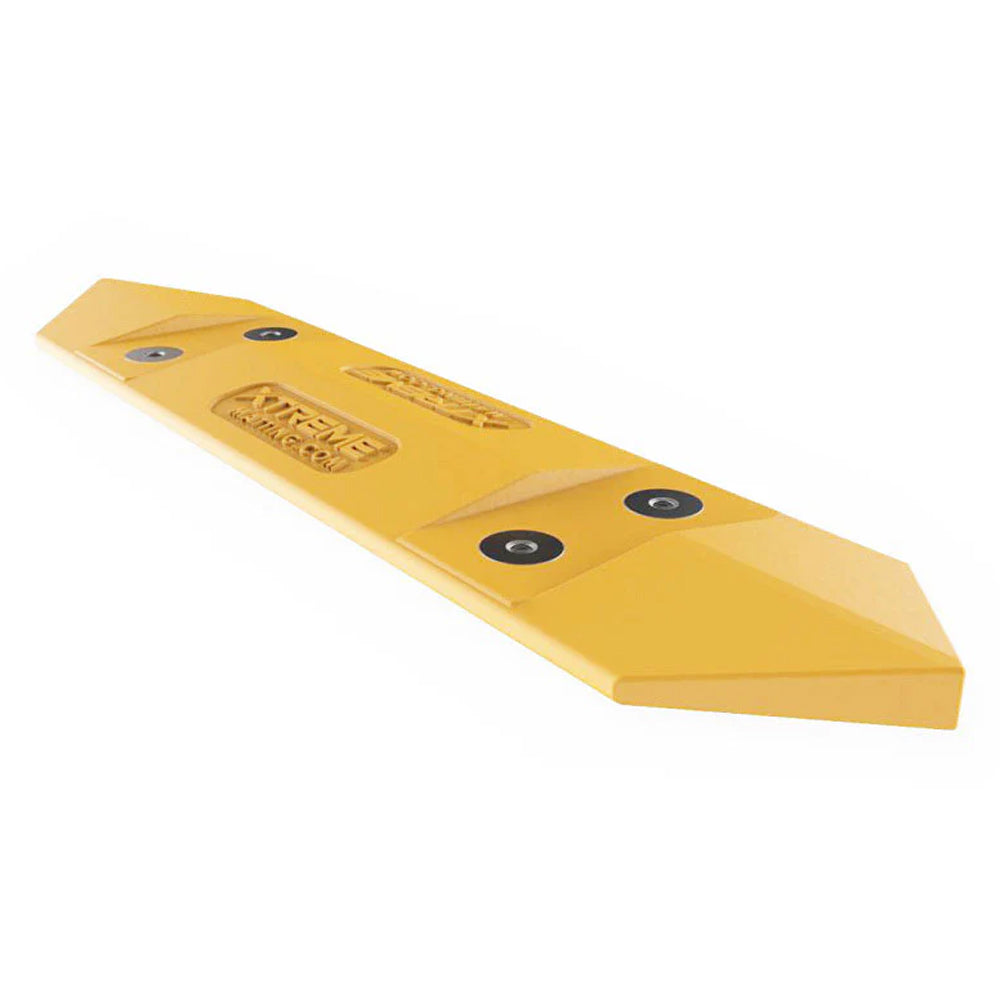

Modular layouts and compatible ramps available

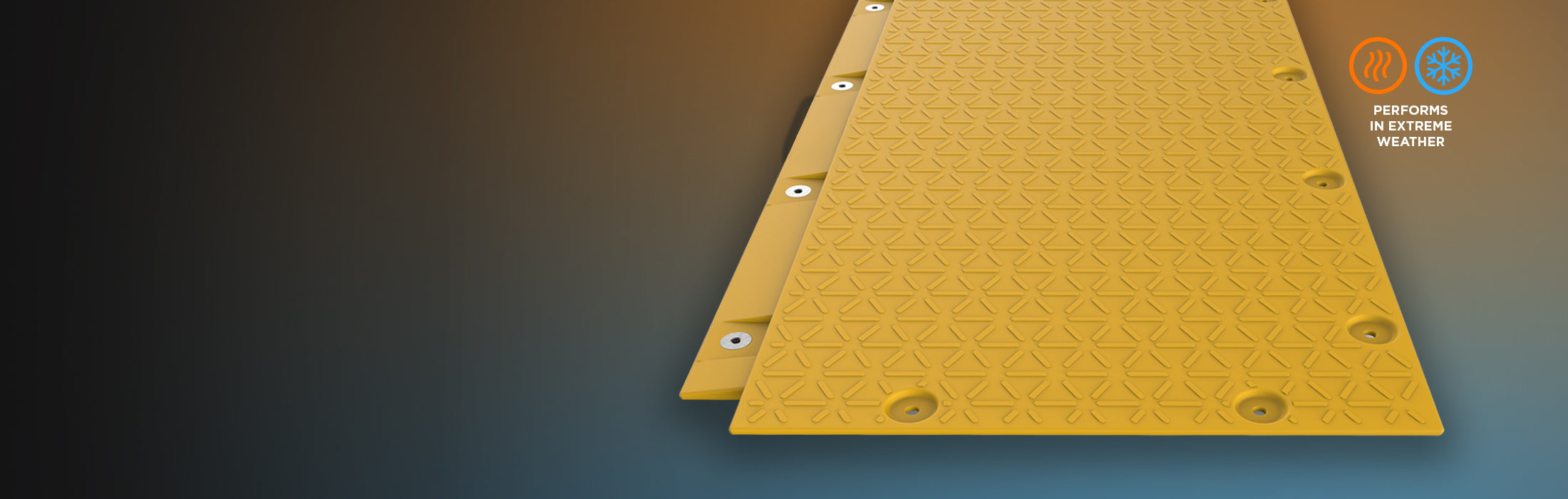

Temperature Rating:
-29°F to +120°F

Compressional Strength:
58kg/cm² (828psi / 119,000lbs per sq ft)

UV Protection:
Yes

Static Dissipative Protection:
Yes

Tread:

Prop 65:

Warranty
GroundGuards mats are built for long-term performance. If a manufacturing defect affects product performance under normal use, we will review the case and determine the appropriate resolution.

• XtremeMat Limited Lifetime Warranty Document

User Responsibility
It is the user’s responsibility to:

• Assess the load-bearing capacity of the ground.

• Ensure vehicles operate only within the weight the ground can safely support.

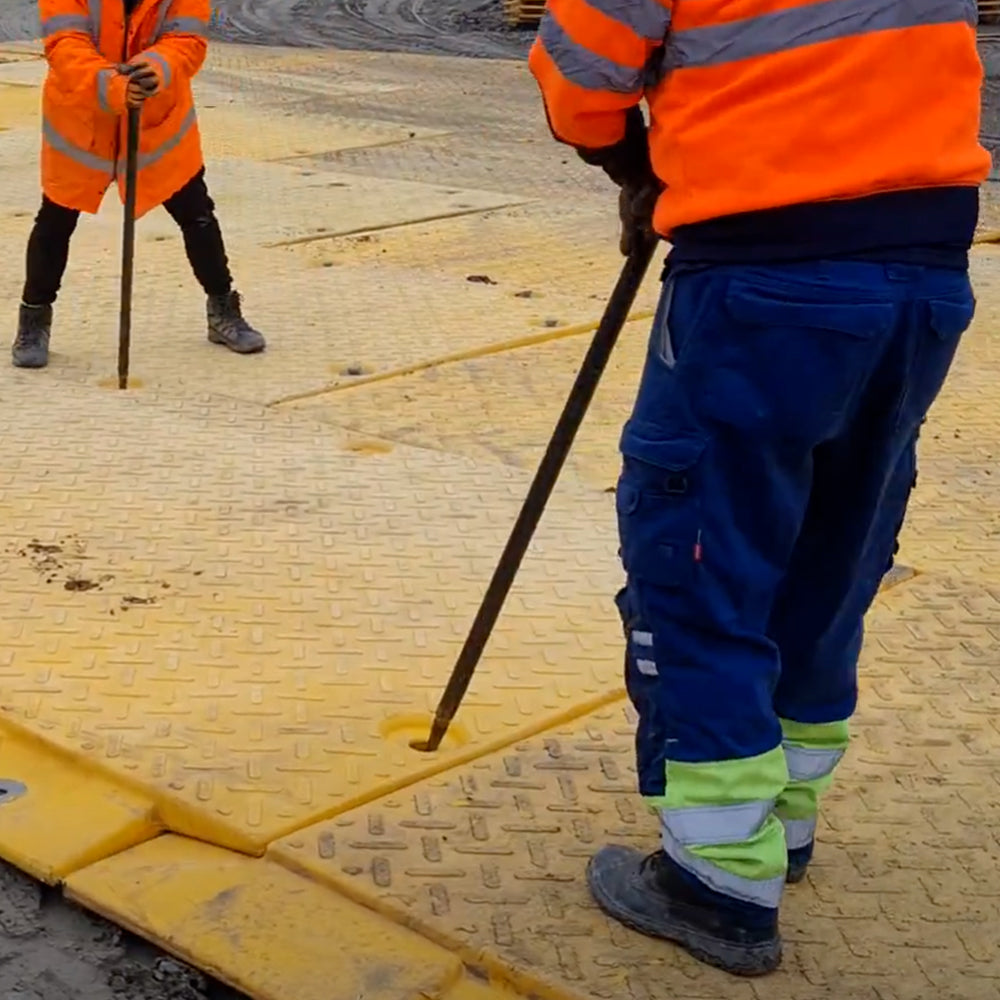

• Install mats with all connectors in place and follow installation instructions.


GroundGuards accepts no liability for any damage, loss, injury, or downtime resulting from misuse. Mats are not suitable for bridging or for use on ground that cannot safely support equipment.

Damage caused by mechanical equipment (e.g., cuts from digger buckets), falling objects, or sharp protrusions beneath the mats is not covered by the guarantee.

By purchasing GroundGuards products, you accept responsibility for proper use and all associated liability.

For further details, see our Weight Loading Explained page.
